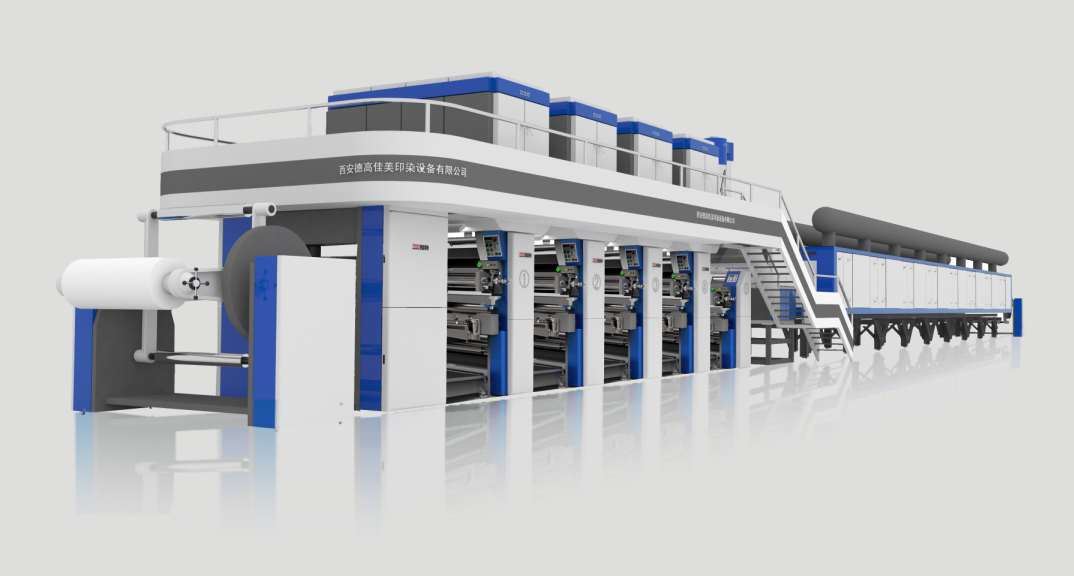

DGE4080 series rotary screen and gravure integrated ink jet printing foaming wallpaper production line

The product line combine the international rotary screen and gravure integrated structure and develop a new multifunctional high-en foaming wallpaper production line. The machine can complete rotary screen printing, gravure printing, flexography printing, high temperature foaming, embossing, etc. the use of servo drive technology, rotary screen compatible Netherland STROK structure, mechanical structure, mature mechanical structure, and advanced processing technology makes the product performance become advanced in similar foreign products. The machine fully meet the needs of color printing, foaming, embossed wallpaper.

DGE 4080 series of advantage

1、 The combination of short road round rotary screen integrated unit realize the shortest paper road.

2、 Rotary screen is compatible with Netherland STROK structure to mature the mechanical structure and improve the processing technology.

3、 The gravure unit uses lateral pressure structure and use cycle ink pump to supply ink.

4、 Each printing unit adopted individual servo control and has there servo control points. Tension parameter shows that the control precision is±5N, so it is stable and reliable with small fluctuations.

5、Efficient vertical oven has effective drying path of 4.5 meters and can choose either the oil of thermal load or natural gas heating resource.

6、The horizontal oven has reasonable structure, uniform temperature, good foaming effect can choose either the oil of thermal load or resource.

7、Deep embossing device is servo drive structure with manually register system, with stable register, clear embossing, and high rate of finished products.

8、The machine adopts the new servo drive control system, which is stable and reliable. The prior alignment function improves the production efficiency and rate of finished goods. The remote diagnosis can be achieved to detect and solve the problems in the shortest time.

The embossing device is servo transmission structure assembled with automatic register system to achieve a high-speed registration. Double hydraulic cylinder has high precision pressure, improve the rate of finished products.

 Design of horizontal oven for a single section is 5 meters. Large wind pressure and dense tuyere design. Temperature difference is within 1 degree, with high drying efficiency and good foaming effect.

 DGE4080series main technical parameters

Specifications   models



Process   of round screen printing

Rotary screen printing,   gravure printing, foaming, embossing

Printing   specifications



Repeated   circulation


Mechanical   speed


Substrate meterial

80-200g/㎡wallpaper base paper, non-woven paper   200-600g/㎡wallpaper coated paper

Gravure   printing error


Screen   printing error


Embossing   error


Alignment   method

Manual   alignment of printing and embossing version
