7280D (Super Large repeat Type) Magnetic + Squeegee Universal Type Rotary Screen Printing Machine

The "Super Large Pattern Repeat Rotary Screen Printing Machine" is a specially designed rotary screen printing equipment for printing single complete pattern units with extremely large dimensions. The value of the Super large pattern repeat rotary screen printing machine lies in its realization of the leap from "repetitive decoration" to "huge pictures". Its main application scenarios are concentrated in fields that pursue ultimate visual impact and integrity.

Conventional pattern repeat: Usually between 640mm and 1018mm, which can already meet the needs of the vast majority of clothing and home textile fabrics.

Super-large pattern repeat: It refers to its maximum pattern repeat size far exceeding 1 meter, which can reach 1018mm, 1680mm, and 2412mm.

Technical parameters

Features

● Super large pattern repeat, maximum pattern repeat 2412mm;

● The printing method can be chosen as any combination of magnetic rod type and scraper type.

● Double-beam adjustable printing unit, easy to maintain and clean.

● Breakthrough in the limit of pattern repeat size

The upper limit of its pattern repeat range far exceeds that of conventional machines, usually reaching over 1018mm, and even reaching 1680mm, 2000mm, and 2412mm, breaking the constraints of traditional rotary screen printing on pattern size.

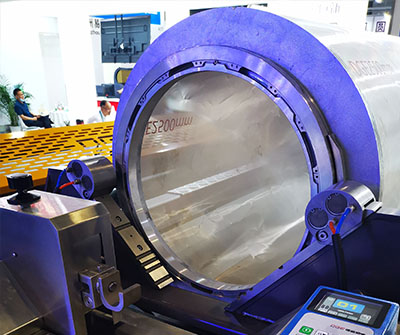

● Super-large high-rigidity circular mesh and supporting structure

To withstand the huge circumference and high-speed operation, the rotary screen is made of high-strength nickel mesh and special reinforcing structure to prevent vibration and deformation.

The bearings, guide belts and frames of the machine have all undergone heavy-duty and reinforced design to ensure the stability and smoothness of the overall operation.

● Achieve the printing of large-scale continuous patterns

Its most notable application feature is the ability to produce huge complete images without repetitive units. It can partially replace the flat screen printing machine and meet the printing requirements of large-sized patterns. Compared with the flat screen printing machine, the 7280D super-large pattern repeat rotary screen printing machine can achieve high speed, continuous and uninterrupted production, and improve production efficiency.

Applicable scenarios

Home textile products

Top-quality curtains and window screens

High-end wall fabric/wallpaper

Large-scale home soft furnishings

Specialty clothing items
