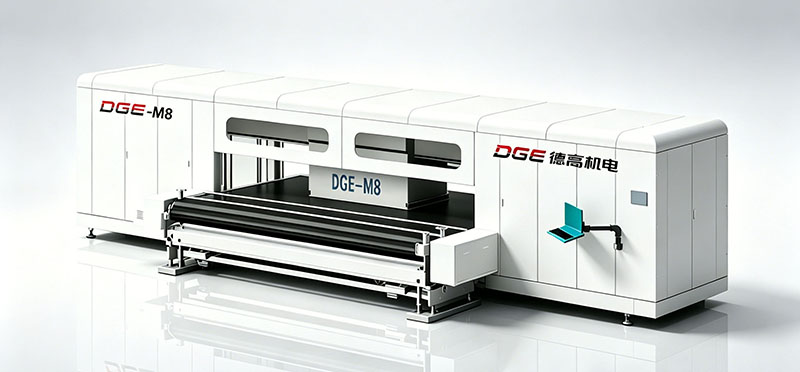

DGE-M8 Series Towel Digital Printing Machine


The DGE-M8 Series Towel Digital Printing Machine is an industrial printing device specially developed for terry uneven fabrics and super absorbent towel materials.It breaks the limitations of traditional printing processes, requiring no plate making, with no pattern restrictions and no minimum order quantity.Perfectly compatible with all kinds of towel fabrics, it realizes high-definition penetration printing with firm color fastness and no hardening of fabric handfeel.It provides a one-stop solution to the difficulties in towel printing production and empowers home textile factories to achieve flexible production.


The DGE-M8 digital printing machine adopts a dedicated inkjet algorithm for terry fabrics, which optimizes the ink output targeting the uneven texture of towels. It effectively solves common industry problems such as whitening, blank gaps and ink bleeding on terry surfaces.DGE digital printing machines maintain stable operation without position deviation during long-time continuous production. They can accurately restore high-definition gradients, portrait photos, fine lines and large color block patterns, fully meeting the high quality requirements of towel printing.


Technical Parameters

Product ModelDGE-M8-200DGE-M8-260DGE-M8-320
Print HeadTypeJapanese industrial print head: Seiko RC1536 series / StarFire SG1024 series
Multiple arrangement modes Seiko RC1536:   4×5 / 4×10       6×5 / 6×10       8×5 / 8×10
StarFire SG1024:  7×5 / 7×10      10×5 / 10×10     13×5 / 13×10
 Color arrangement10-channel Symmetric / 20-channel Symmetric

Precision
Seiko RC1536 :     360dpi  -  1440dpi
StarFire SG1024 :   400dpi  -  1600dpi
Working jet distance (mm)Seiko RC1536 :      7 ~ 11 mm
StarFire SG1024 :  3.5 ~ 5 mm
Conveyor Belt DGE Special Aramid Conveyor Belt
Maximum Printing Width2000mm2600mm3200mm
Printing SpeedDGE-M8-S1 pass800 m2/h900 m2/h1000 m2/h
2 pass420 m2/h470 m2/h520 m2/h
DGE-M8-M1 pass1120 m2/h1300 m2/h1480 m2/h
2 pass620 m2/h700 m2/h780 m2/h
DGE-M8-L1 pass1440 m2/h1700 m2/h1960 m2/h
2 pass820 m2/h930 m2/h1040 m2/h

Applicable Ink
 Ink TypeHigh Temperature Disperse Ink/Acid Ink/Pigment Ink/Reactive Ink
 Ink ColorCyan (C), Magenta (M), Yellow (Y), Black (K), Orange (O), Bright Red (R), Royal Blue (B), Green (G);Light Magenta (LM), Light Cyan (LC), Light Black (LK) are optional.
Applicable FabricsTowel, Beach Towel, Towel Blanket, Terry Cloth
SoftwareSpanish RIP Software
Image FormatFile Format: TIF/JPG/EPS/PDF   Color Mode: RGB/CMYK
Data TransmissionGigabit fiber/ USB3.0
 Functional ConfigurationConveyor Belt DryingHot Air Drying System
Ink Supply System Industrial-grade Negative Pressure Degassing Ink Supply with Nozzle Internal Ink Circulation Function
Intelligent CleaningAutomatic Cleaning and Automatic Moisturizing
Washing SystemDual Brush Rollers          Dual Cleaning Rollers
Dual Sponges             Intelligent Spraying
Water Removal Air Knife         Multi-stage Drying
Working EnvironmentPower Supply380VAC±5%, 3-phase 5-wire, 50Hz
PowerPrinting System:20KW        Heating System:20-80KW
Air Pressure6~8Mpa manually adjustable
Temperature and HumidityAmbient Temperature: 25-30℃ recommended
Ambient Humidity: 60-80% recommended




Application Fields


With a rich variety of printed towels, it is widely used in daily scenarios such as bath towels, face towels, kitchen towels, beach towels, bathrobes, baby bath towels, sauna towels, pet towels, and cultural and creative towels.


Baby bath TowelsSauna TowelsBeach TowelsPet Towels Kitchen Towels
